UV-IR cut filters ir cut switch ATM-ICR-112
Short Description:
Model: ATM-ICR-112
Electrical Features:
1, Resistance: 25Ω±5Ω(normal temperature)
2, Driving voltage: 3.5V
3, Current: 175mA
Optical Features:
1,Glass thickness: T=0.21mm
2,Glass dimension:8*9mm

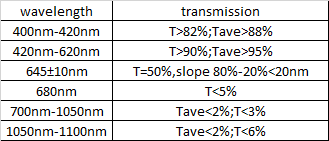

3,Glass(red) Transmission:
4,Glass(white):
400nm-1100nm: Tave>96%
UV-IR cut filters (also called IR filters or endothermic filters) are used to filter the infrared band. For example, installation on equipment with incandescent lamps (such as slides, projectors) can block unnecessary heat from burning the lens, and installation on cameras with solid-state electronic devices (CCD or CMOS) can prevent infrared rays from passing through the camera. Cause image distortion. Typical infrared filters are usually light blue lenses, but they can still block the longer red light in the visible light band.
Drawing:
