Infrared Thermal Imaging Shutters for Infrared Camera, Thermal Monocular

Short Description:

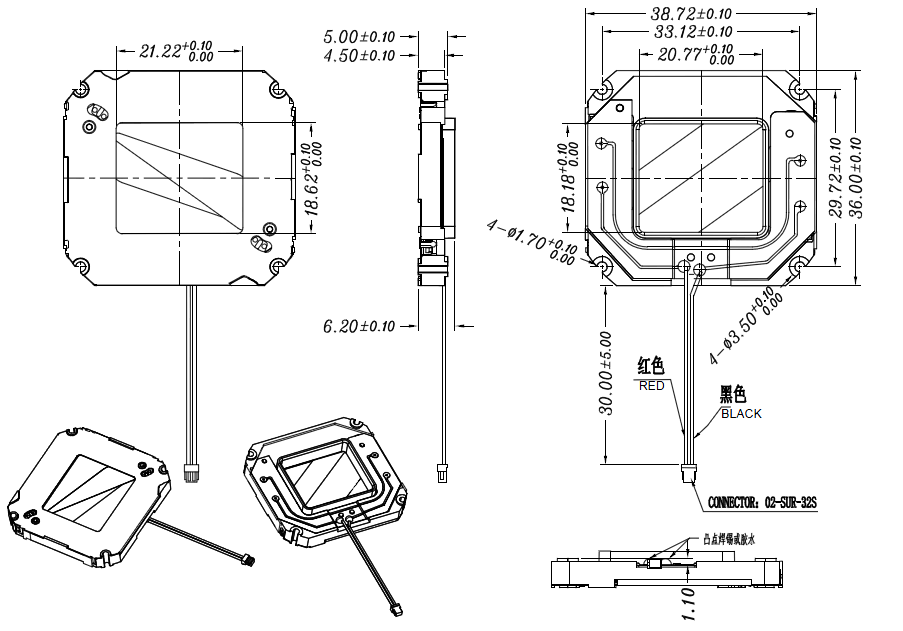

Model: ATM-SU-222

Size: 38.72*36*6.20mm

Window: 18.18*20.77mm

Blades: 4pcs

Voltage: DC-4.0V

The thermal imaging shutter is used in a thermal camera to act as a reference for periodic detector calibrations in order to provide a more accurate image of the thermal scene the camera is capturing. It is built between the lens and the detector, and the shutter switch is manually activated by setting the time interval. The presence of the shutter is to accommodate the temperature measurement defect of the detector. Since the low-end detectors and detectors are currently subject to process level and software technology, they cannot be adaptively adjusted according to the external temperature and humidity.
